How to use Filter Expression property in Receive Shape (using Promoted Properties) of an Orchestration in BizTalk Server / Resolving illegal ‘activate’ predicate error – Sample Application Walkthrough

Hi Everyone, In this post I will show how to configure the Filter Expression property of a Receive Shape, so that based on the value of the incoming message, particular orchestration will be started.

This application is based on the one of my requirement in office as we had to re-use the schemas for different business purposes.

In this application there are two Orchestration and based on the value of one of the element from the Incoming message (this value is to be property promoted) respective Orchestration is fired.

If the value of the NotificationReceiver is 1 THEN Orchestration 1 will be Fired

If the value of the NotificationReceiver is 2 THEN Orchestration 2 will be Fired

Create Business Schema in a new Project as shown below –

Do Property Promotion for the Node NotificationReceiver, as this node will be the one used to promote the decide the Orchestration to be fired.

Create Property Schema from New Items – Name the Property Schema – Add two Elements in the Property schema as – NotificationSenderProp and NotificationReceiverProp and promote the properties NotificationReceiver and NotificationSender from the business schema



Create Two Orchestration in one Project as shown below –

Note – Add Reference to the Schema's project and message type of the created schema above

BizTalk Orchestration1.odx

Expression in the Event Logging (This expression is for our reference to know the Orchestration being fired)

System.Diagnostics.EventLog.WriteEntry("Orchestration 1 started - Notification Sender is 1","Orchestration 1");

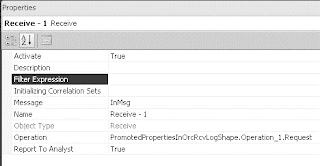

Then click on the Receive Shape and Select Activate Property to True, This will enable – Filter Expression property – Select the Property Element which will be evaluated and if found true then it will start the Orchestration

Then in the Filter Expression it will create an Expression as –

(PromotedPropertiesSchema.NotificationReceiveProp ==1)

When we build with this we get the following error – illegal ‘activate’ predicate

To solve this go to the filter expression editor and for the value to be compared put double quotes as below

This will generate as –

(PromotedPropertiesSchema.NotificationReceiveProp == "1")

DEVELOP ANOTHER ORCHESTRATION (BizTalk Orchestration2.odx) WITH THE SAME STEPS but with Filter value as - (PromotedPropertiesSchema.NotificationReceiveProp == "2")

Now to test it Drop an XML with the NotificationReceiver value to 1 then Orchestration 1 will be started and an event Log will be written.

Again Drop an XML with the NotificationReceiver value to 2 then Orchestration 2 will be started

Links –
1) How to Configure the Receive Shape

https://msdn.microsoft.com/en-us/library/aa558717.aspx

2) Using Filters With the Receive Message Shape

https://msdn.microsoft.com/en-us/library/aa560178.aspx

XSD Views of the Schema

PromotedReceiveSchema.xsd

<?xml version="1.0" encoding="utf-16"?> <xs:schema xmlns="http://PromotedPropertiesSchema.PromotedReceiveSchema" xmlns:b="http://schemas.microsoft.com/BizTalk/2003" xmlns:ns0="https://PromotedPropertiesSchema.ReceivePropertySchema" targetNamespace="http://PromotedPropertiesSchema.PromotedReceiveSchema" xmlns:xs="http://www.w3.org/2001/XMLSchema">   <xs:annotation>     <xs:appinfo>       <b:imports>         <b:namespace prefix="ns0" uri="https://PromotedPropertiesSchema.ReceivePropertySchema" location=".\ReceivePropertySchema.xsd" />       </b:imports>     </xs:appinfo>   </xs:annotation>   <xs:element name="MainRoot">     <xs:annotation>       <xs:appinfo>         <b:properties>           <b:property name="ns0:NotificationReceiveProp" xpath="/*[local-name()='MainRoot' and namespace-uri()='http://PromotedPropertiesSchema.PromotedReceiveSchema']/*[local-name()='NotificationReceiver' and namespace-uri()='']" />           <b:property name="ns0:NotificationSenderProp" xpath="/*[local-name()='MainRoot' and namespace-uri()='http://PromotedPropertiesSchema.PromotedReceiveSchema']/*[local-name()='NotificationSender' and namespace-uri()='']" />         </b:properties>       </xs:appinfo>     </xs:annotation>     <xs:complexType>       <xs:sequence>         <xs:element name="NotificationReceiver" type="xs:string" />         <xs:element name="NotificationSender" type="xs:string" />         <xs:element name="NotificationNo" type="xs:string" />         <xs:element name="ChildRecord">           <xs:complexType>             <xs:sequence>               <xs:element name="Details1" type="xs:string" />               <xs:element name="Details2" type="xs:string" />               <xs:element name="Details3" type="xs:string" />             </xs:sequence>           </xs:complexType>         </xs:element>       </xs:sequence>     </xs:complexType>   </xs:element> </xs:schema>

ReceivePropertySchema.xsd

<?xml version="1.0" encoding="utf-16"?> <xs:schema xmlns="http://PromotedPropertiesSchema.ReceivePropertySchema" xmlns:b="http://schemas.microsoft.com/BizTalk/2003" targetNamespace="https://PromotedPropertiesSchema.ReceivePropertySchema" xmlns:xs="http://www.w3.org/2001/XMLSchema">   <xs:annotation>     <xs:appinfo>       <b:schemaInfo schema_type="property" xmlns:b="http://schemas.microsoft.com/BizTalk/2003" />     </xs:appinfo>   </xs:annotation>   <xs:element name="NotificationSenderProp" type="xs:string">     <xs:annotation>       <xs:appinfo>         <b:fieldInfo propertyGuid="7f345e1a-e8dd-428a-8d19-b882834c18f2" />       </xs:appinfo>     </xs:annotation>   </xs:element>   <xs:element name="NotificationReceiveProp" type="xs:string">     <xs:annotation>       <xs:appinfo>         <b:fieldInfo propertyGuid="7e9f4475-464b-4b3c-8c67-0abd1501436f" />       </xs:appinfo>     </xs:annotation>   </xs:element> </xs:schema>
